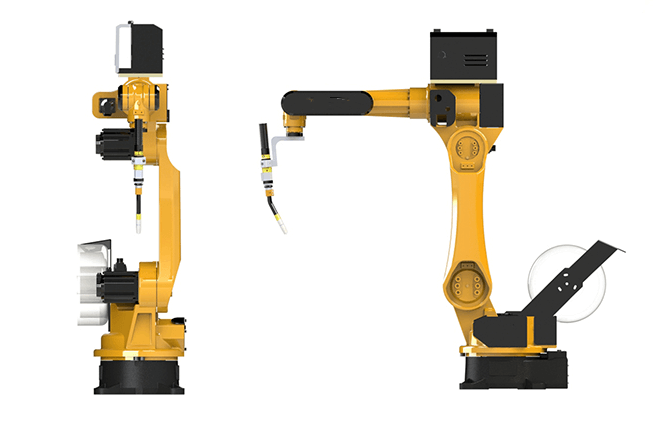

Welding robot UCRT06C-160 arm length 1600mm
| Model | Welding robot UCRT06C-160 arm length 1600mm |
| Max. Loading capacity | 6kg |
| liberation movement | 1622mm |
| Max. linear speed | 1100mm/s |
| repeatability | ±0.08mm |
| coordinate control | Joint coordinate、tool、workpiece |
| Max. Working range | 1 axis: ±140° |
| 2 axes: +60°-90° | |
| 3 axes: +90°-60° | |
| 4 axes: ±180° | |
| 5 axis: +115°-90° | |
| 6 axes: ±360° | |
| Max. working radius | 1.6m |
| welding material | Carbon steel, stainless steel, galvanized sheet, etc. |
